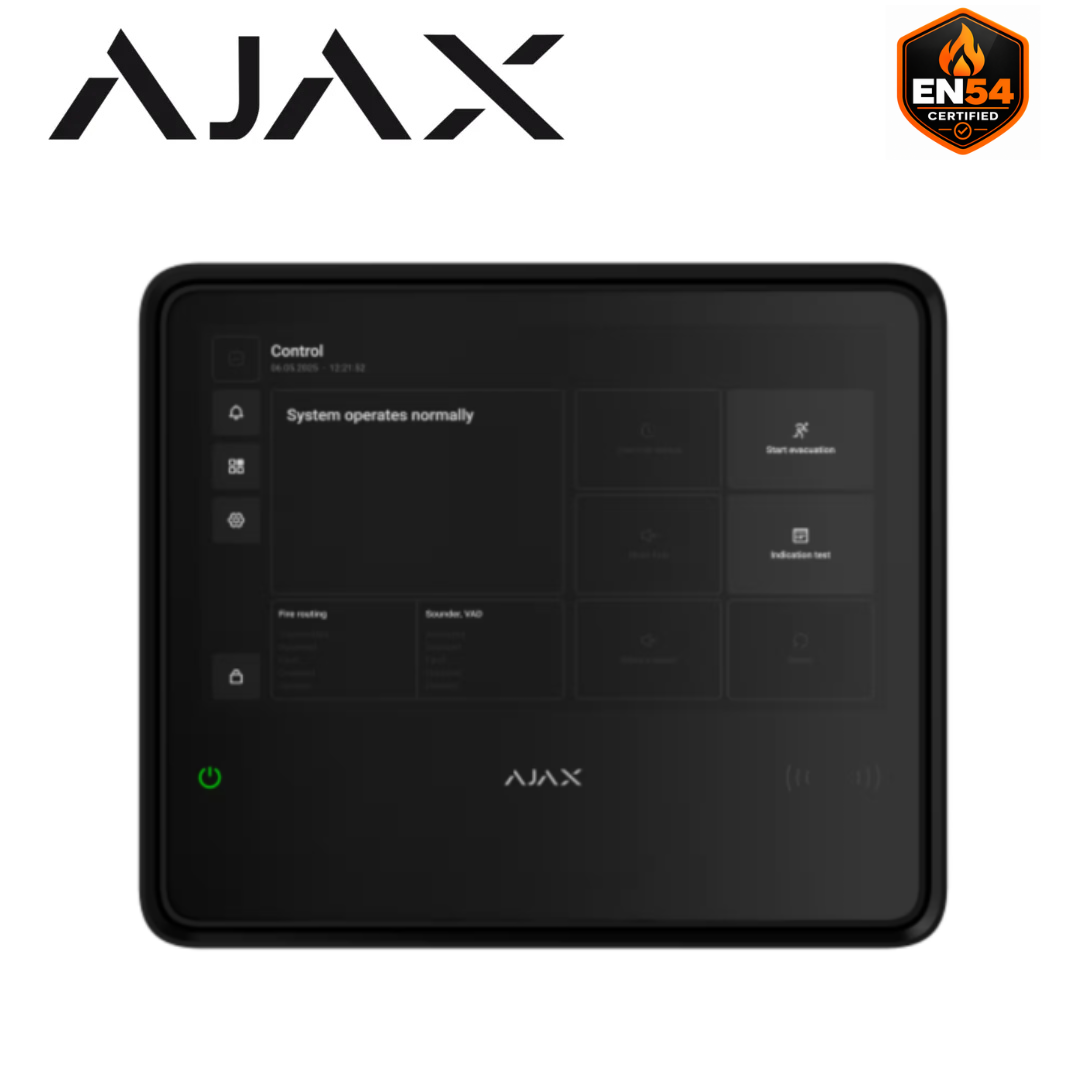

Manage fire safety, security and building automation from one intelligent platform with the Ajax EN54 Fire Hub Jeweller Black. This professional wireless Control and Indicating Equipment (CIE) provides centralised fire alarm monitoring, system management and emergency notifications for modern commercial and public buildings.

Designed for demanding fire safety installations, the Ajax EN54 Fire Hub combines a responsive 10.1-inch IPS touchscreen with advanced wireless communication, multiple network connections and extensive device compatibility. Supporting up to 200 connected devices and 40 fire zones, it offers a scalable solution for offices, educational facilities, commercial premises and municipal properties.

Built around Ajax Jeweller and Wings wireless technologies, the system provides secure communication between compatible fire detection, intrusion security and automation devices. Ethernet, Wi-Fi and dual SIM cellular connectivity offer multiple communication paths for alarm reporting and remote monitoring.

Finished in sleek black, the Ajax EN54 Fire Hub delivers professional fire alarm management alongside modern touchscreen operation, comprehensive event logging and flexible backup power options.

Key Features:

• EN54 Fire Safety Compliance: Designed to meet EN54-2, EN54-4, EN54-13, EN54-21 and EN54-25 requirements, alongside EN 50131 Grade 2 intrusion security standards.

• 10.1-Inch IPS Touchscreen: Large interactive display provides clear visibility of system status, fire alarms, faults and configuration settings.

• Up to 200 Connected Devices: Supports extensive Ajax fire detection, intrusion security and automation installations.

• 40 Fire Detection Zones: Organise detectors and connected equipment into designated zones for efficient alarm identification and management.

• Ethernet, Wi-Fi and Dual SIM Connectivity: Multiple communication options, including 2G/4G cellular networks, help maintain connectivity with users and monitoring services.

• Jeweller Wireless Communication: Secure two-way communication for transmitting alarms, commands and events over distances of up to approximately 1,800 metres in open space.

• Wings Wireless Technology: Supports compatible photo and video data transmission within the Ajax ecosystem.

• Integrated 60 dB Buzzer: Built-in audible warning works alongside LED indicators and touchscreen notifications to communicate system events.

• 5,000-Event History: Detailed event logging allows authorised users and installers to review system activity, alarms and faults.

• 64 Automation Scenarios: Configure supported automated responses for connected security and building management equipment.

• Combined Fire and Security Management: Integrates compatible fire detection, intrusion protection, video surveillance and automation technologies.

• Remote Access Through Ajax Apps: Monitor supported system functions, receive notifications and manage settings remotely.

• Monitoring Station Compatibility: Supports SurGard Contact ID and SIA DC-09 protocols for professional alarm reporting.

• 24 or 72-Hour Backup Power Options: Compatible with separately available internal batteries for continued operation during mains power interruptions.

• SmartBracket Tamper Protection: Secure mounting arrangement detects attempted removal or unauthorised interference.

• Professional Black Finish: Contemporary design suited to modern commercial and institutional environments.

Product Specifications:

• Brand: Ajax

• Model: EN54 Fire Hub Jeweller

• Product Code: 125733.315.BL

• Colour: Black

• Device Type: Wireless Fire Alarm Control & Indicating Equipment (CIE)

• Display: 10.1" IPS Touchscreen

• Maximum Connected Devices: 200

• Maximum Fire Zones: 40

• Wireless Communication: Jeweller and Wings

• Wireless Range: Up to 1,800 Metres (Open Space)

• Connectivity: Ethernet, Wi-Fi, Dual 2G/4G SIM

• Audible Indicator: 60 dB Buzzer

• Event Log: Up to 5,000 Events

• Automation Scenarios: Up to 64

• Alarm Reporting Protocols: SurGard Contact ID and SIA DC-09

• Backup Battery Options: 24 or 72 Hours (Batteries Sold Separately)

• Mounting: SmartBracket with Tamper Detection

• Fire Safety Standards: EN54-2, EN54-4, EN54-13, EN54-21, EN54-25

• Intrusion Security Standard: EN 50131 Grade 2

• Application: Commercial, Municipal and Professional Fire Safety Installations
