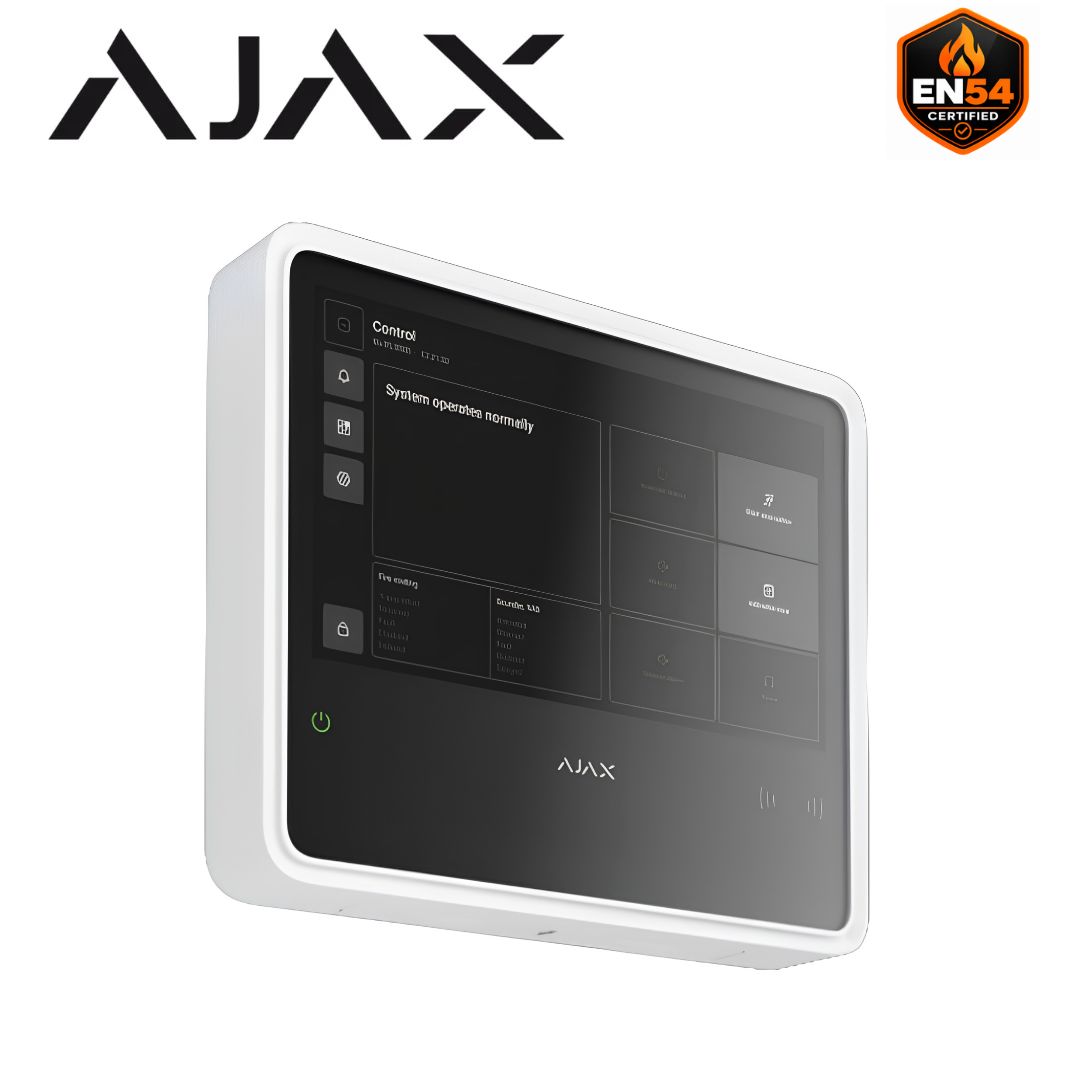

Take control of your building's fire safety with the Ajax EN54 Fire Hub Jeweller, an advanced wireless fire alarm control panel designed to deliver professional fire detection, alarm management and integrated building security from one central platform.

Engineered for commercial buildings, offices, public facilities and municipal properties, this EN54-certified Control and Indicating Equipment (CIE) combines fire protection, intrusion detection, video surveillance and automation capabilities within a modern, easy-to-manage system.

Featuring a large 10.1-inch IPS touchscreen, support for up to 200 connected devices and 40 fire zones, the Ajax EN54 Fire Hub provides comprehensive system monitoring with intuitive touchscreen operation. Built-in Ethernet, Wi-Fi and dual SIM cellular connectivity help maintain reliable communication with monitoring stations and connected users.

With secure Jeweller and Wings wireless technologies, remote management through Ajax applications and flexible battery backup options, this professional fire alarm control panel offers a scalable solution for modern fire safety installations.

Key Features:

• EN54-Certified Fire Alarm Control Panel: Complies with EN54-2, EN54-4, EN54-13, EN54-21 and EN54-25 standards, alongside EN 50131 Grade 2 intrusion security requirements.

• 10.1-Inch IPS Touchscreen: Large, responsive display provides convenient access to fire alarm notifications, device information, system settings and operational controls.

• Supports Up to 200 Devices: Connect a wide range of compatible Ajax fire detection, security and automation devices for comprehensive property protection.

• 40 Fire Zones: Organise connected fire detection equipment into dedicated zones for effective alarm identification and management.

• Multiple Communication Channels: Integrated Ethernet, Wi-Fi and dual 2G/4G cellular connectivity provide flexible communication and backup options.

• Jeweller Wireless Technology: Secure two-way wireless communication for alarms, commands and events, with a transmission range of up to approximately 1,800 metres in open space.

• Wings Communication Protocol: Dedicated wireless technology supports compatible photo and video data transmission.

• Integrated Audible and Visual Alerts: Built-in 60 dB buzzer, LED indicators and touchscreen notifications provide clear system status and alarm warnings.

• 5,000-Event Log: Detailed event history helps installers and authorised users review alarms, faults and system activity.

• Up to 64 Automation Scenarios: Configure supported automated actions to coordinate fire safety, intrusion protection and building management functions.

• Fire and Security Integration: Combines compatible fire detection, intrusion alarm, video surveillance and automation equipment within one Ajax ecosystem.

• Remote Monitoring and Management: Access supported system functions and receive notifications through Ajax applications and compatible monitoring stations.

• Professional Alarm Reporting: Supports SurGard Contact ID and SIA DC-09 communication protocols for monitoring station connectivity.

• Flexible Battery Backup: Compatible with separately available internal battery options providing up to 24 or 72 hours of backup operation, depending on configuration.

• Advanced Tamper Protection: SmartBracket mounting incorporates tamper detection to help identify unauthorised removal or interference.

• Modern White Design: Professional appearance suitable for installation in commercial, institutional and public buildings.

Product Specifications:

• Brand: Ajax

• Model: EN54 Fire Hub Jeweller

• Product Code: 125732.315.WH

• Colour: White

• Device Type: Wireless Fire Alarm Control & Indicating Equipment (CIE)

• Display: 10.1" IPS Touchscreen

• Maximum Connected Devices: 200

• Maximum Fire Zones: 40

• Wireless Technologies: Jeweller and Wings

• Wireless Range: Up to 1,800 Metres (Open Space)

• Network Connectivity: Ethernet, Wi-Fi, Dual 2G/4G SIM

• Audible Indicator: 60 dB Buzzer

• Event Log Capacity: Up to 5,000 Events

• Automation Scenarios: Up to 64

• Monitoring Protocols: SurGard Contact ID, SIA DC-09

• Battery Backup: Up to 24 or 72 Hours (Compatible Batteries Sold Separately)

• Mounting: SmartBracket with Tamper Protection

• Certification: EN54-2, EN54-4, EN54-13, EN54-21, EN54-25

• Intrusion Security Standard: EN 50131 Grade 2

Please Note: Backup batteries are sold separately. Installation, configuration and commissioning should be carried out in accordance with the applicable fire safety regulations and Ajax EN54 system requirements. Compatibility and supported functions may vary depending on connected devices and system configuration.
