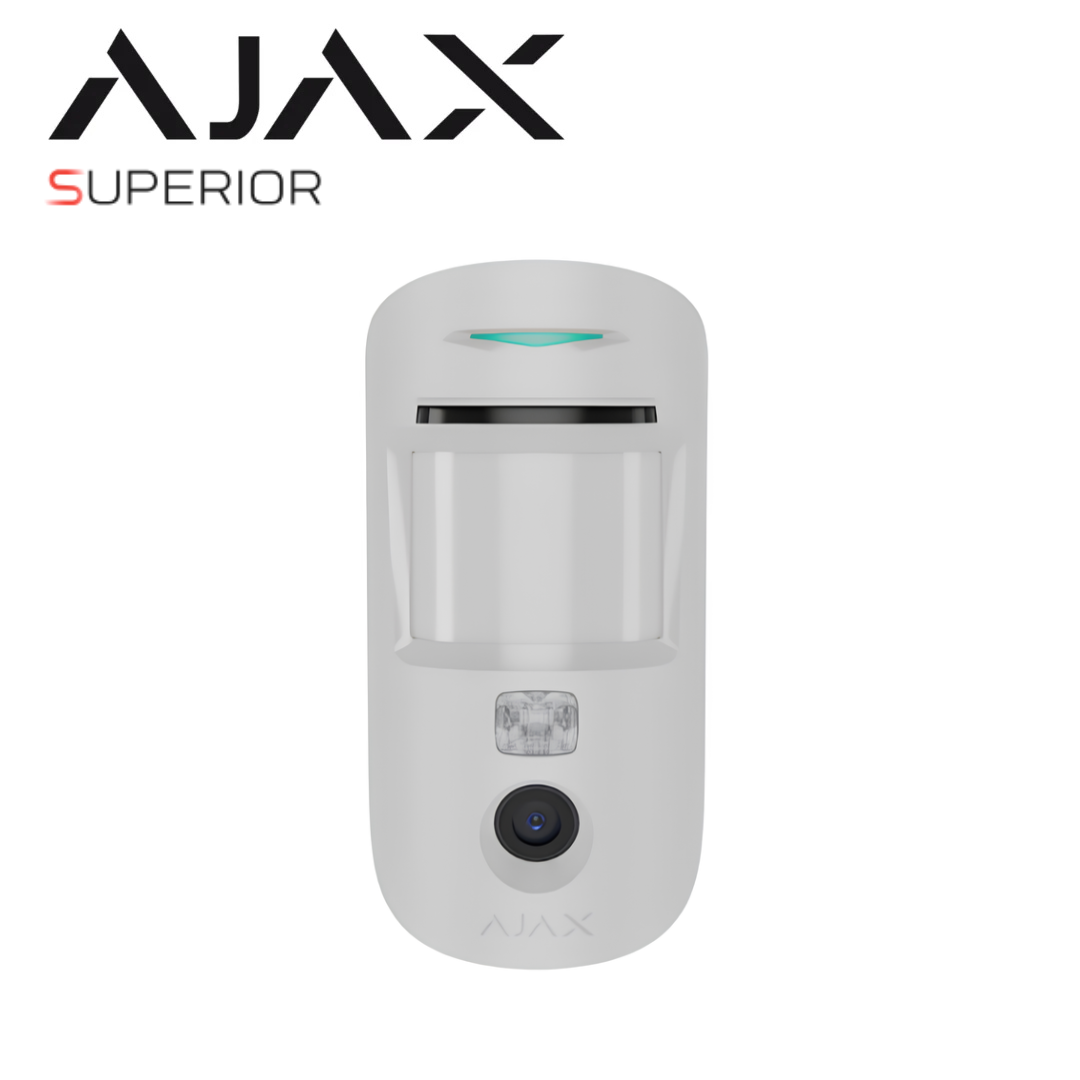

Ajax Superior MotionCam AM (PhOD) Jeweller – Wireless PIR Motion Detector with Anti-Masking and HD Photo Verification

Strengthen your property's security with the Ajax Superior MotionCam AM (PhOD) Jeweller, an advanced wireless PIR motion detector combining intelligent movement detection, HD photo verification and enhanced anti-sabotage protection.

Engineered for high-security environments, vacant properties, commercial premises and public spaces, this professional motion detector features an advanced optical system capable of detecting movement at distances of up to 12 metres. Its reduced blind zone of approximately 80 cm and improved lower-lens sensitivity help identify crawling intruders attempting to avoid conventional motion detection.

The integrated anti-masking system provides additional protection against attempts to obstruct the detector, while six photo verification modes allow users and monitoring companies to visually assess security events. HD images can be captured following alarms, tampering or masking attempts, as well as through scheduled, scenario-based and on-demand requests.

With the ability to deliver the first photo in as little as 4.5 seconds, adjustable motion sensitivity and remote configuration through Ajax PRO applications, the Superior MotionCam AM (PhOD) Jeweller delivers advanced intrusion detection and visual verification for demanding security installations.

Key Features:

• Advanced Wireless PIR Detection: Monitors indoor movement using an enhanced optical system designed for professional intrusion protection.

• Up to 12m Motion Detection Range: Detects movement across distances of up to approximately 39 feet for comprehensive indoor coverage.

• Integrated Anti-Masking Protection: Identifies attempts to obstruct the detector, with adjustable anti-masking sensitivity.

• HD Photo Verification: Captures detailed images to help users and monitoring companies assess alarm events and potential security threats.

• Six Photo Verification Modes: Supports image capture by alarm, on demand, by scenario, by schedule, by masking attempt and by tamper alarm.

• Crawling Intruder Detection: Improved sensitivity in the lower areas of the lens helps detect individuals attempting to move beneath conventional detection zones.

• Reduced 80cm Blind Zone: Enhanced optical design minimises the area immediately beneath the detector where movement may otherwise go undetected.

• Rapid Photo Delivery: First verification image can be delivered in as little as 4.5 seconds under suitable communication conditions.

• 92° Horizontal Viewing Angle: Provides broad horizontal coverage for monitoring indoor spaces.

• 71° Vertical Viewing Angle: Extended vertical detection coverage supports improved movement identification.

• Four Motion Sensitivity Levels: Adjustable detection sensitivity allows installers to configure the device according to environmental requirements.

• Enhanced Tamper Detection: Reports attempts to open the enclosure or remove the detector from its mounting panel.

• Photo Verification of Sabotage: Supports image capture following masking attempts and tamper alarms to provide additional incident information.

• Remote Configuration: Manage supported settings, sensitivity levels and device functions through Ajax PRO applications.

• Ideal for High-Risk Locations: Suitable for vacant buildings, public spaces and properties requiring enhanced protection against deliberate interference.

• Professional White Finish: Discreet housing designed to complement modern residential and commercial interiors.

Product Specifications:

• Brand: Ajax

• Model: Superior MotionCam AM (PhOD) Jeweller

• Product Code: 116768.306.WH1

• Colour: White

• Device Type: Wireless PIR Motion Detector with Photo Verification

• Detection Technology: Passive Infrared (PIR)

• Maximum Detection Range: Up to 12m (39ft)

• Horizontal Viewing Angle: 92°

• Vertical Viewing Angle: 71°

• Minimum Blind Zone: Approximately 80cm (2.6ft)

• Photo Verification: HD Image Capture

• Photo Verification Modes: 6

• First Photo Delivery: From 4.5 Seconds

• Motion Sensitivity Levels: 4

• Anti-Masking: Yes, Adjustable Sensitivity

• Crawling Person Detection: Supported

• Tamper Protection: Enclosure Opening and Removal Detection

• Configuration: Ajax PRO Applications

• Installation Environment: Indoor

• Application: Professional Intrusion Detection and Visual Alarm Verification
