Product Description

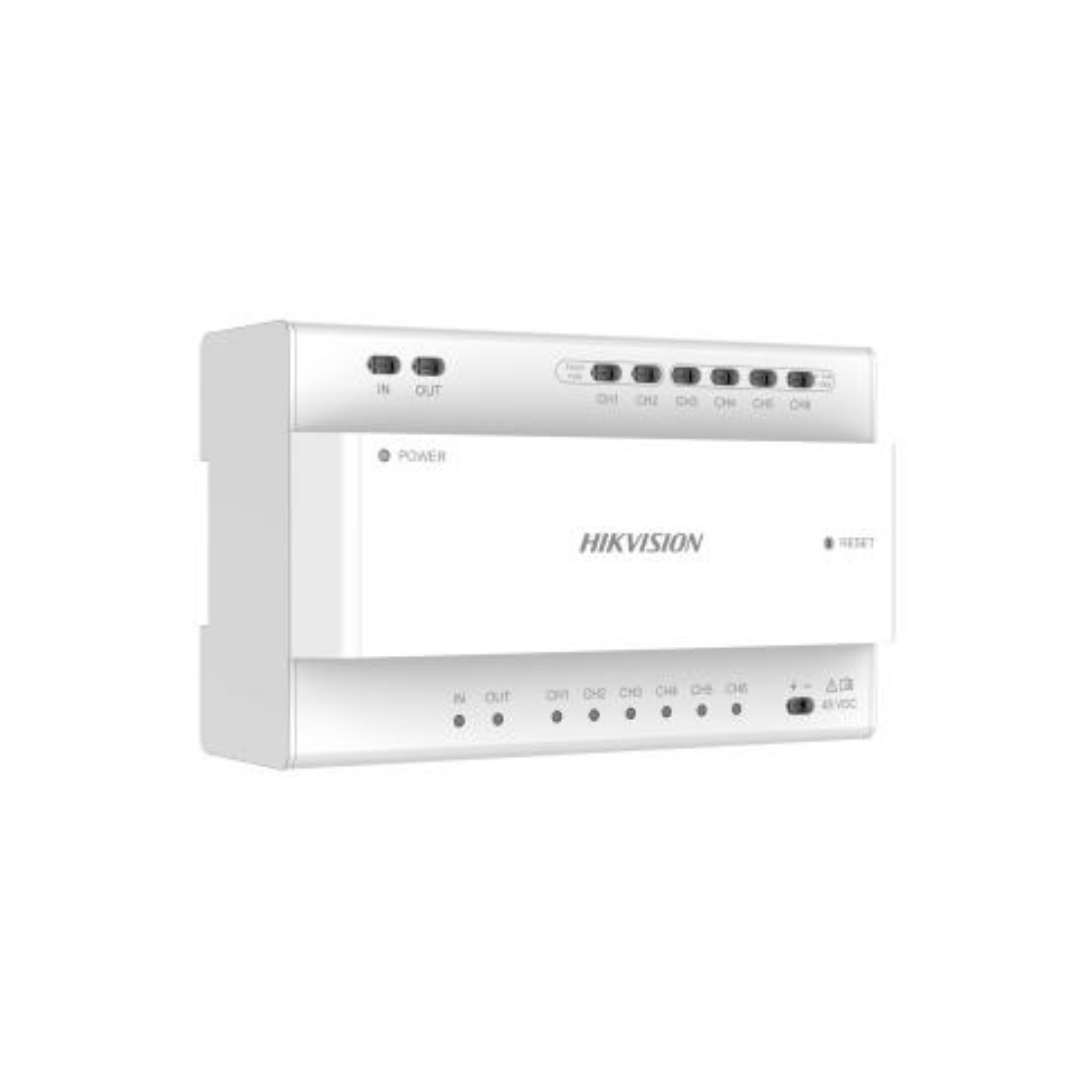

The Hikvision DS-KAD7060EY is a high-performance 2-wire HD video intercom distributor, designed to simplify and stabilize power and signal transmission across multiple indoor and outdoor intercom devices. Compatible with Hikvision’s 2-wire intercom system, it enables up to six indoor stations and two door stations to be connected over existing two-core cabling, making it ideal for both new installations and retrofit projects.

With integrated power management, data relay, and signal boosting, this distributor ensures reliable video, audio, and unlock control functions—all over a single, simplified wiring structure. Housed in a compact, DIN-rail-mountable enclosure, it fits seamlessly into modern residential and commercial intercom setups.

Key Features

• 2-Wire System Support
  Transmits power, audio, video, and control signals over a standard two-core cable

• Multi-Device Connectivity
  Supports up to 6 indoor stations and 2 door stations from a single unit

• Integrated Power Supply
  Built-in 24V DC power output simplifies setup and reduces the need for external adapters

• Signal and Power Isolation
  Ensures stable operation and protection from electrical interference or short circuits

• DIN-Rail Mountable Design
  Easy installation into structured wiring cabinets or control boxes

• Reliable Power Protection
  Built-in short-circuit, overload, and over-voltage protection for safe operation

• LED Status Indicators
  Visual feedback for power, data, and connection status

• Compact and Durable Build
  Enclosed in a robust casing suitable for professional installations

Technical Specifications

• Power Input: 24V DC

• Power Output: 24V DC (up to 6 terminals)

• Data Ports: 8 × 2-wire terminals (6 for indoor, 2 for door stations)

• Protection: Short-circuit, overload, surge protection

• Installation: DIN-rail mount

• Operating Temperature: -10°C to +55°C

• Dimensions: Approx. 164 mm × 100 mm × 40 mm

Ideal For

• Multi-unit residential buildings

• Office intercom networks

• Retrofit upgrades using existing two-wire cabling

• Expanding Hikvision 2-wire video intercom systems
