Hikvision DS-KIS101-P Two Wire, Analog Intercom Kit, Surface Mount, White (Offer)

Product Description

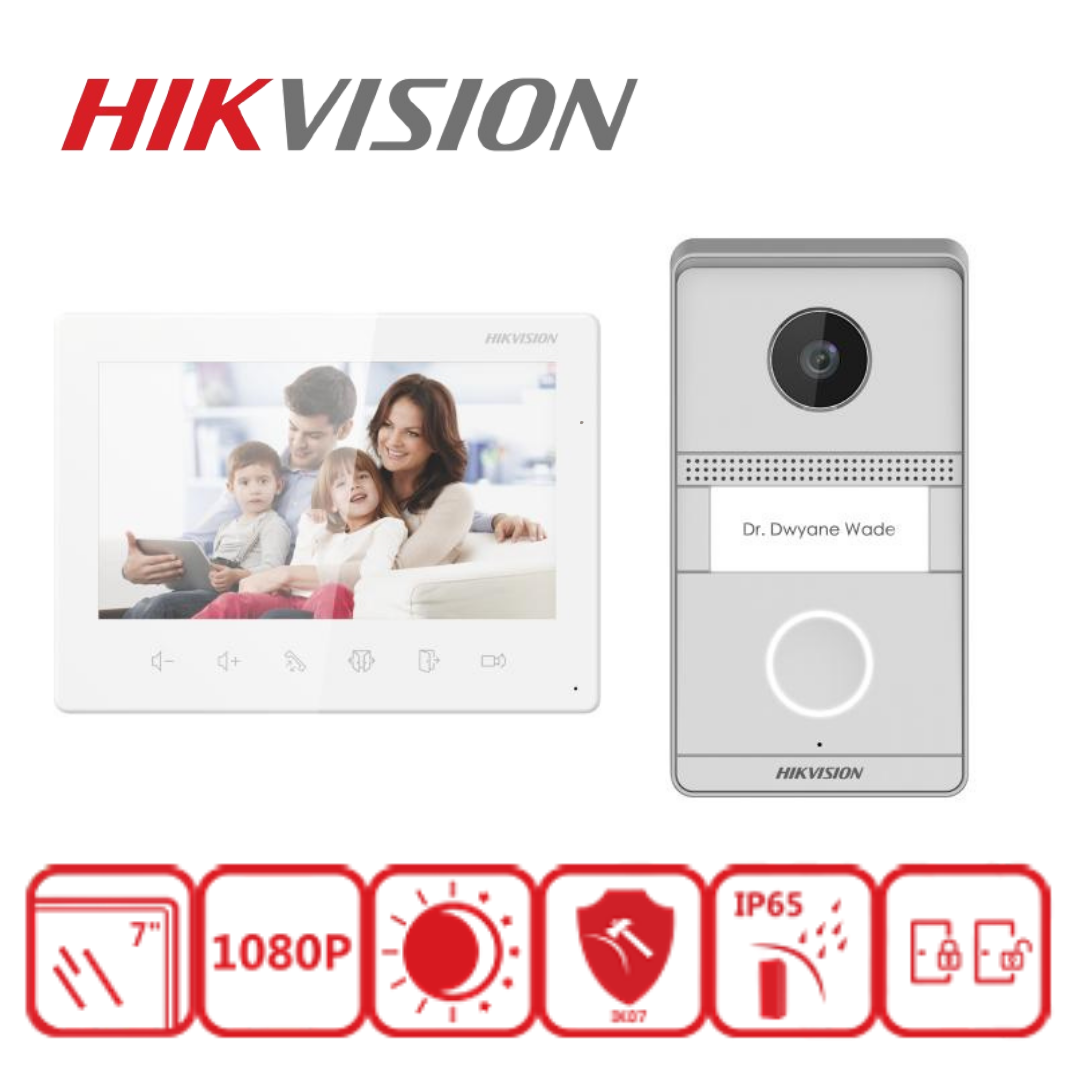

The Hikvision DS‑KIS101‑P is a surface-mounted two‑wire analog video intercom kit, offering a streamlined plug‑and‑play solution for secure entry control. It comprises a 2 MP outdoor door station with color video and white-light illumination, along with a 7‑inch indoor monitor featuring six touch buttons. Designed for simple installation using just two wires for both power and signal, this system supports video calls, door unlocking, and one-touch nametag calling.

Key Features

Outdoor Door Station

• 2 MP low-illumination color camera with white-light supplement

• Wide-angle view: 100° horizontal × 69° vertical

• True WDR support for balanced imaging in varied lighting

• Built-in omnidirectional microphone and loudspeaker (over 80 dB at 20 cm)

• Adjustable audio volume via screwdriver setting

• One-touch nametag calling button

• Four alarm inputs, two exit buttons, tamper switch

• Two lock relay outputs (adjustable 7 s duration) and one bell relay

• Door contact input and debugging interface

• Surface mounting with protective hood

• Rugged IP65-rated and IK07 vandal-resistant housing

• Power: 48 V DC, 0.5 A; Power consumption ≤ 12 W

• Temperature range: −30 °C to +60 °C

• Dimensions: 150 × 82 × 23.5 mm

Indoor Monitor

• 7-inch TFT non-touch display, 1024 × 600 resolution

• Six touch buttons for call, unlock, monitoring, and volume control

• Built-in omnidirectional mic and loudspeaker (>80 dB at 20 cm)

• Audio volume adjustable via buttons

• Three two-wire connection ports

• Power: 48 V DC; Power consumption ≤ 5 W

• Temperature range: −10 °C to +50 °C; Humidity: 10–90% RH

• Surface mounting form factor

• Dimensions: 187 × 137 × 25.4 mm

System Highlights

• True two-wire system delivering both power and video signal

• Plug-and-play operation—no configuration required

• Supports video calling and door unlocking via indoor unit

• Durable construction suitable for outdoor use

• Ideal for homes, small offices, and light commercial settings
