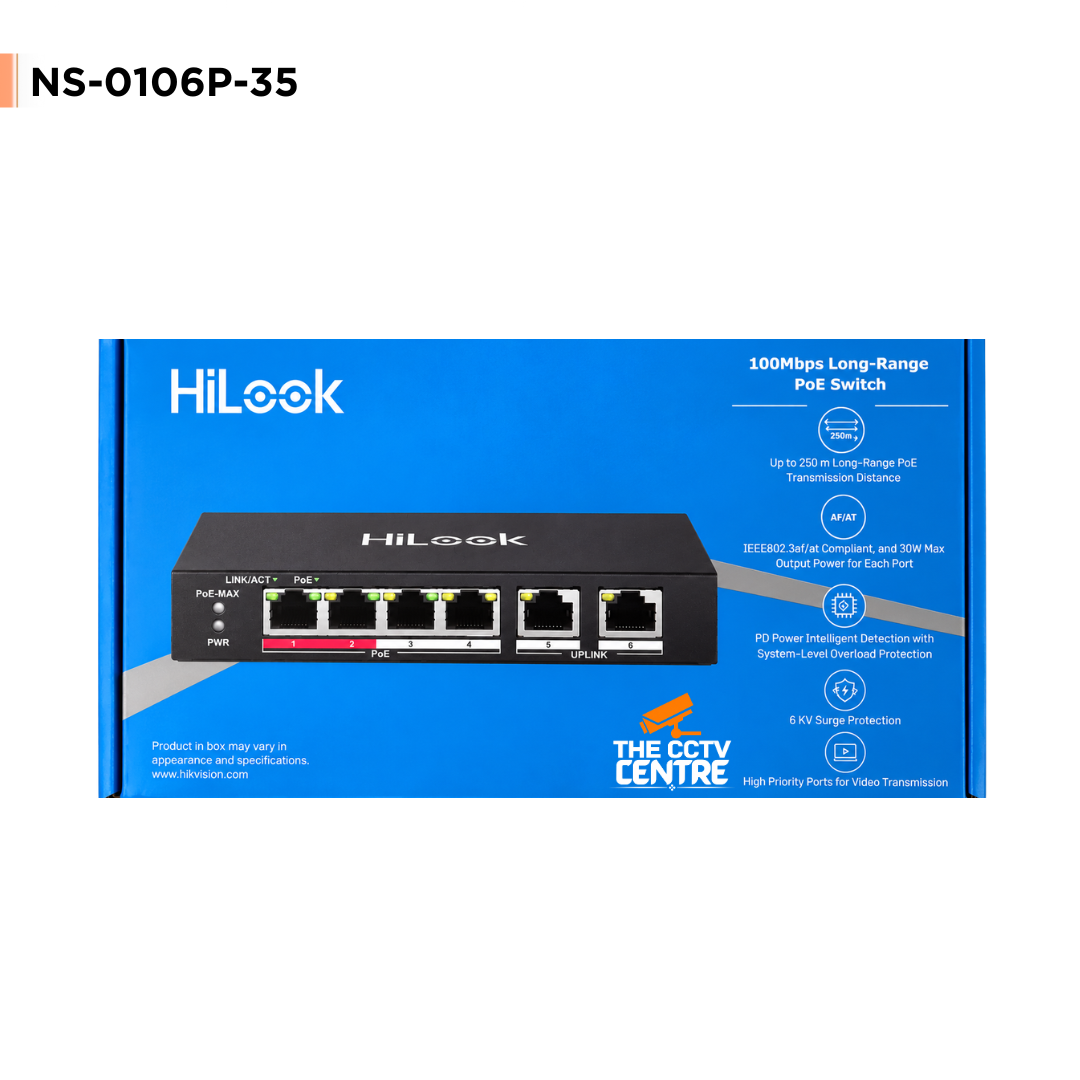

The HiLook NS-0106P-35 is a compact 4-port unmanaged PoE switch designed for straightforward IP CCTV and network installations. With 4 × 10/100Mbps PoE ports and 2 × 10/100Mbps RJ45 ports, it provides a simple way to connect and power compatible PoE cameras and network devices.

Supporting IEEE 802.3af/at PoE, the switch can provide up to 35W total PoE output, allowing power and network data to travel through the same Ethernet cable. This helps reduce additional cabling and separate power supplies when installing compatible IP cameras.

For cameras positioned further away, the NS-0106P-35 supports long-range transmission up to 250 metres, making it particularly useful for larger CCTV installations where standard Ethernet distances may not be sufficient.

The switch also features 6kV surge protection on its PoE ports, providing additional protection against electrical surges and helping improve system reliability.

With wire-speed forwarding and store-and-forward switching, network traffic is handled efficiently for dependable CCTV video transmission. Its unmanaged plug-and-play design means there is no complicated configuration required.

A high-strength metal housing provides excellent durability, while the fan-free design allows quiet, reliable operation with fewer moving components.

Key Features:

• 4 × 10/100Mbps PoE ports
• 2 × 10/100Mbps RJ45 ports
• Up to 35W total PoE output
• Supports IEEE 802.3af/at PoE
• Up to 250m long-range transmission
• 6kV surge protection for PoE ports
• Wire-speed forwarding
• Store-and-forward switching
• Unmanaged plug-and-play operation
• No complicated configuration required
• Power and data through a single Ethernet cable
• High-strength metal housing
• Reliable fan-free design
• Ideal for IP CCTV systems
• HiLook by Hikvision
