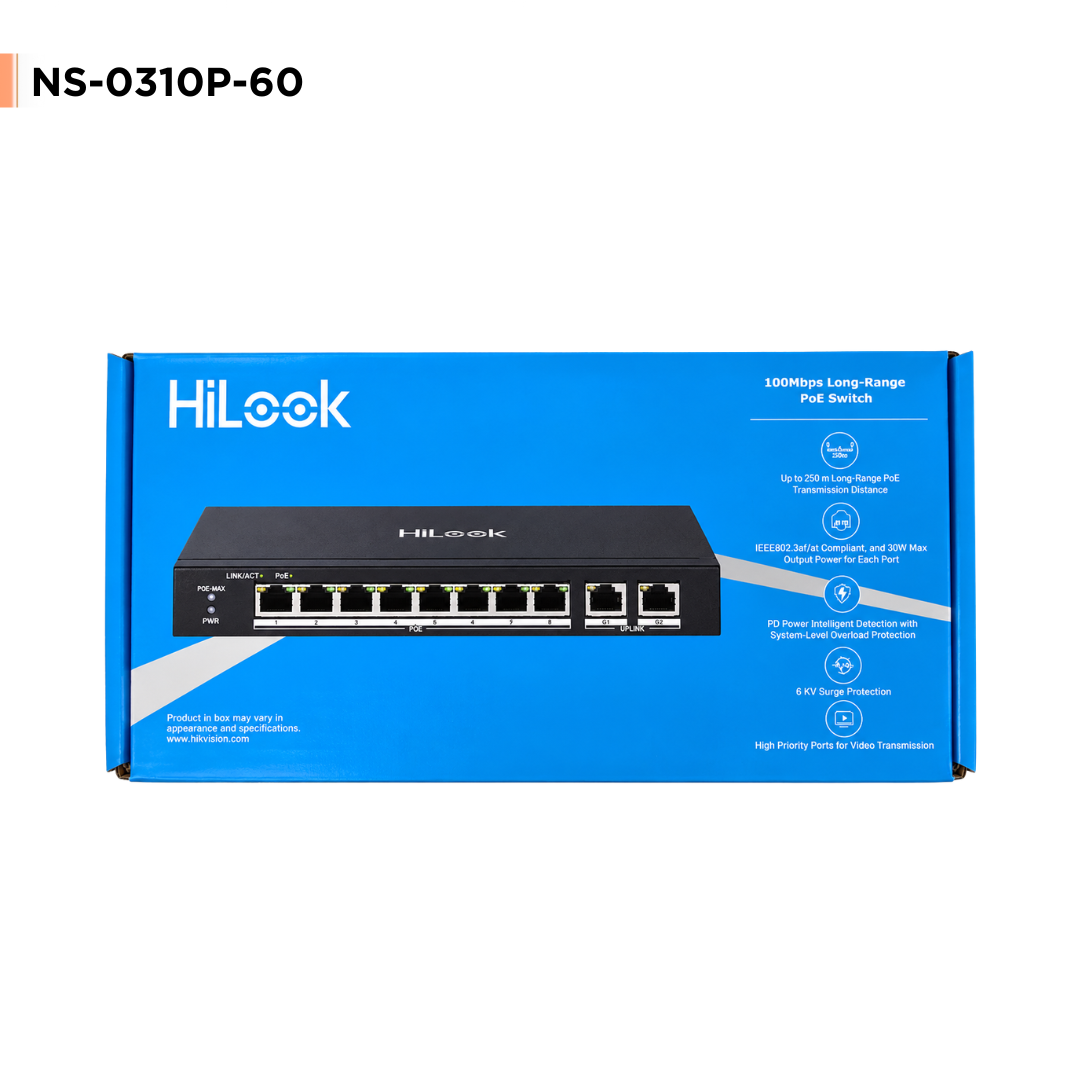

The HiLook NS-0310P-60 is a reliable 8-port unmanaged PoE network switch designed specifically for CCTV and IP surveillance installations. Combining eight PoE ports, two Gigabit uplink ports and long-range transmission, it provides a simple way to power and connect multiple IP cameras without complicated network configuration.

The switch features 8 × 10/100Mbps PoE ports, allowing compatible IP cameras to receive both power and network data through a single Ethernet cable. Two additional Gigabit RJ45 uplink ports provide high-speed connections to an NVR, router or wider network.

Supporting IEEE 802.3af/at PoE standards, the NS-0310P-60 provides a maximum 60W PoE power budget, making it suitable for powering multiple compatible surveillance devices from one central switch.

For larger CCTV installations, long-range PoE transmission of up to 250 metres provides considerably greater installation flexibility than a conventional Ethernet run, helping connect cameras positioned further away from the recorder or network equipment.

The switch also incorporates 6kV surge protection on its PoE ports, providing additional protection for connected equipment against electrical surges. Wire-speed forwarding and store-and-forward switching help maintain stable and efficient network traffic across connected devices.

Built around a high-strength metal housing, the NS-0310P-60 is designed for dependable everyday operation. Its fanless design eliminates fan noise while also reducing the number of moving components within the unit, making it well suited to continuous CCTV use.

Key Features:

• 8 × 10/100Mbps PoE ports
• 2 × Gigabit RJ45 uplink ports
• Maximum 60W PoE power budget
• Supports IEEE 802.3af/at PoE
• Up to 250m long-range transmission
• 6kV surge protection for PoE ports
• Wire-speed forwarding
• Store-and-forward switching
• Supports IEEE 802.3, 802.3u, 802.3x, 802.3z and 802.3ab
• Durable high-strength metal housing
• Reliable fanless design
• Unmanaged operation with no complex configuration required
• Ideal for IP CCTV camera and NVR installations
• HiLook by Hikvision network switch
